Part #:
LS-123-40-4-277

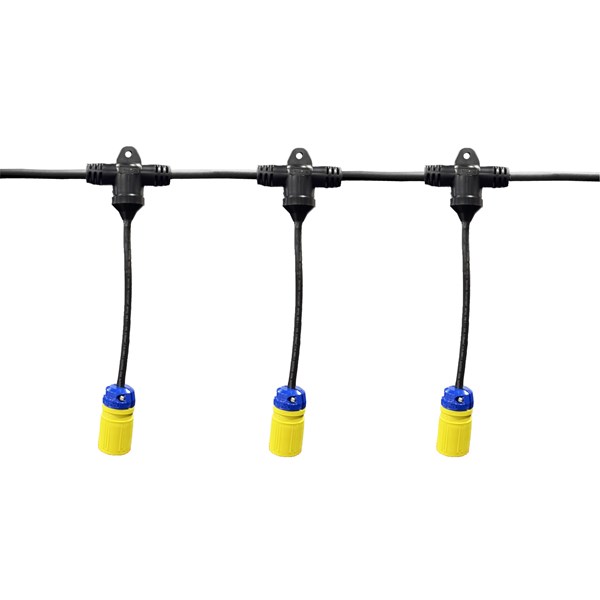

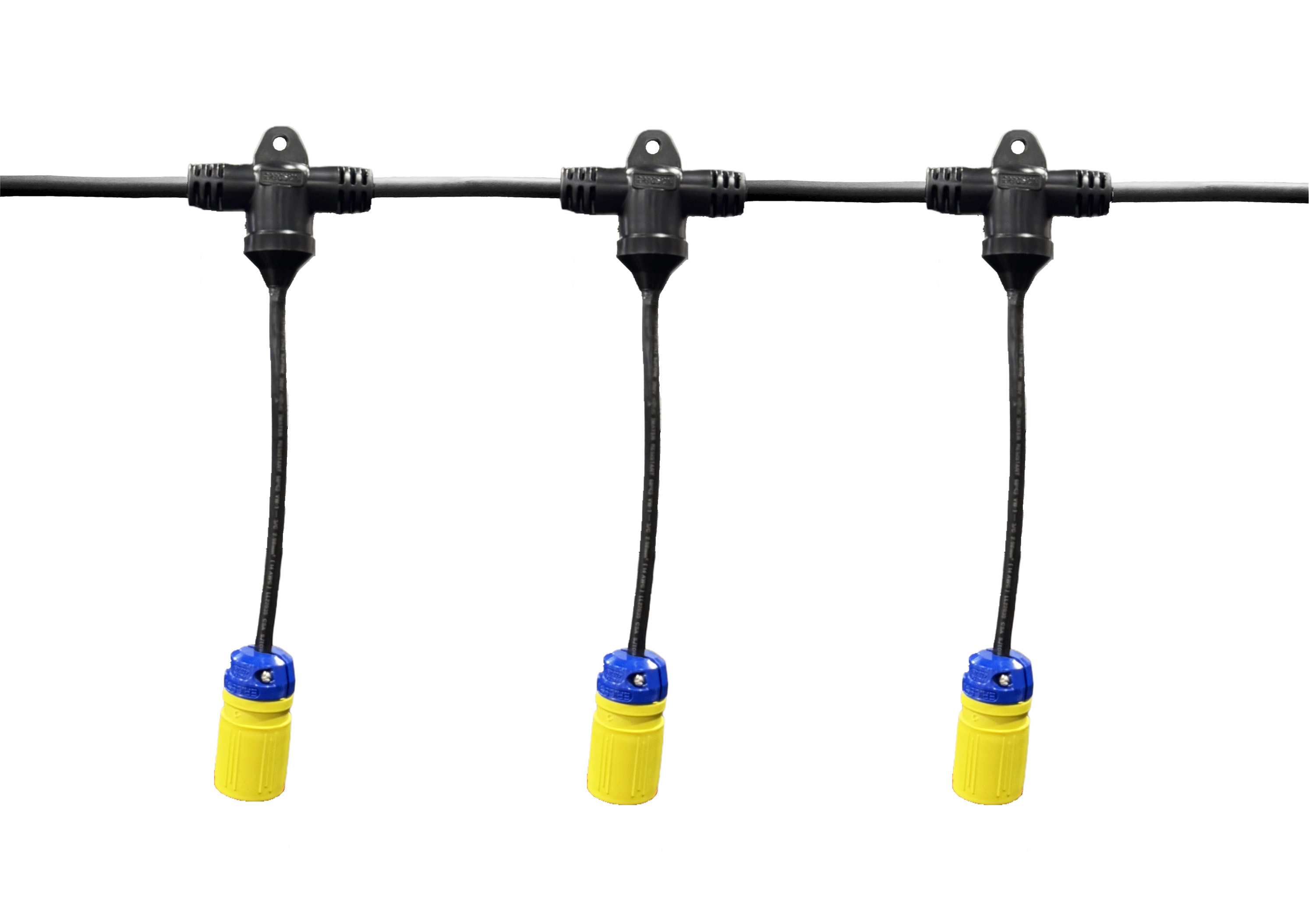

LIGHTING STRINGER 277V 15A NEMA L7-15 PLUG 160FT OAL AWG 12/3 SJTOW 4 SOCKETS DROPS 40 FT SPACING
| Active Revision | A |
|---|---|
| Ideal Application | Lighting Stringer - Single phase power for multiple Light Fixtures that saves time and money on your installation. Eliminates extension cords or temporary conduit runs in the field. |
| Color | Black |
| UPC Code | 782862941843 |
- Availability:
Specifications
| Active Revision | A |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | QCLS |
| Category | Quick Connect Lighting System |
| Sub Category | Lighting Stringers |
Technical Info
| Volts | 277 |
|---|---|
| Load Capacity (Amps) | 15 |
| Cable Type | #12/3 SJTW |
| Cable Length (ft) | 160 |
| Plug Type | L7-15P |
| Conn or Receptacle Type | L7-15C |
| Receptacle Qty | 4 |
Standards & Certifications
| RoHS | RoHS Compliant |
|---|
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 9405408410 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.00000 |
| Warranty | 1 Year |
