Part #:
NM3-CAMDL3006-A

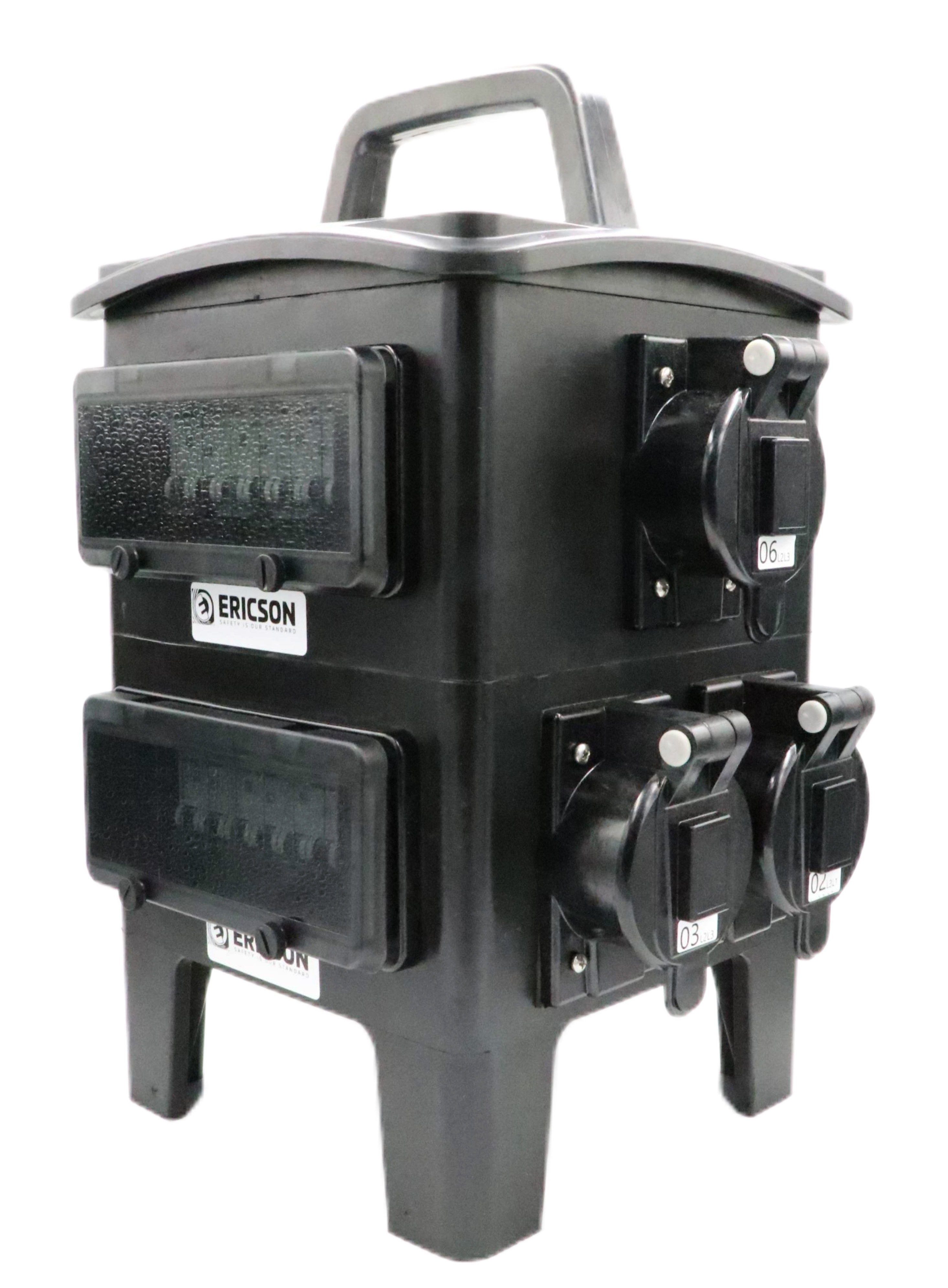

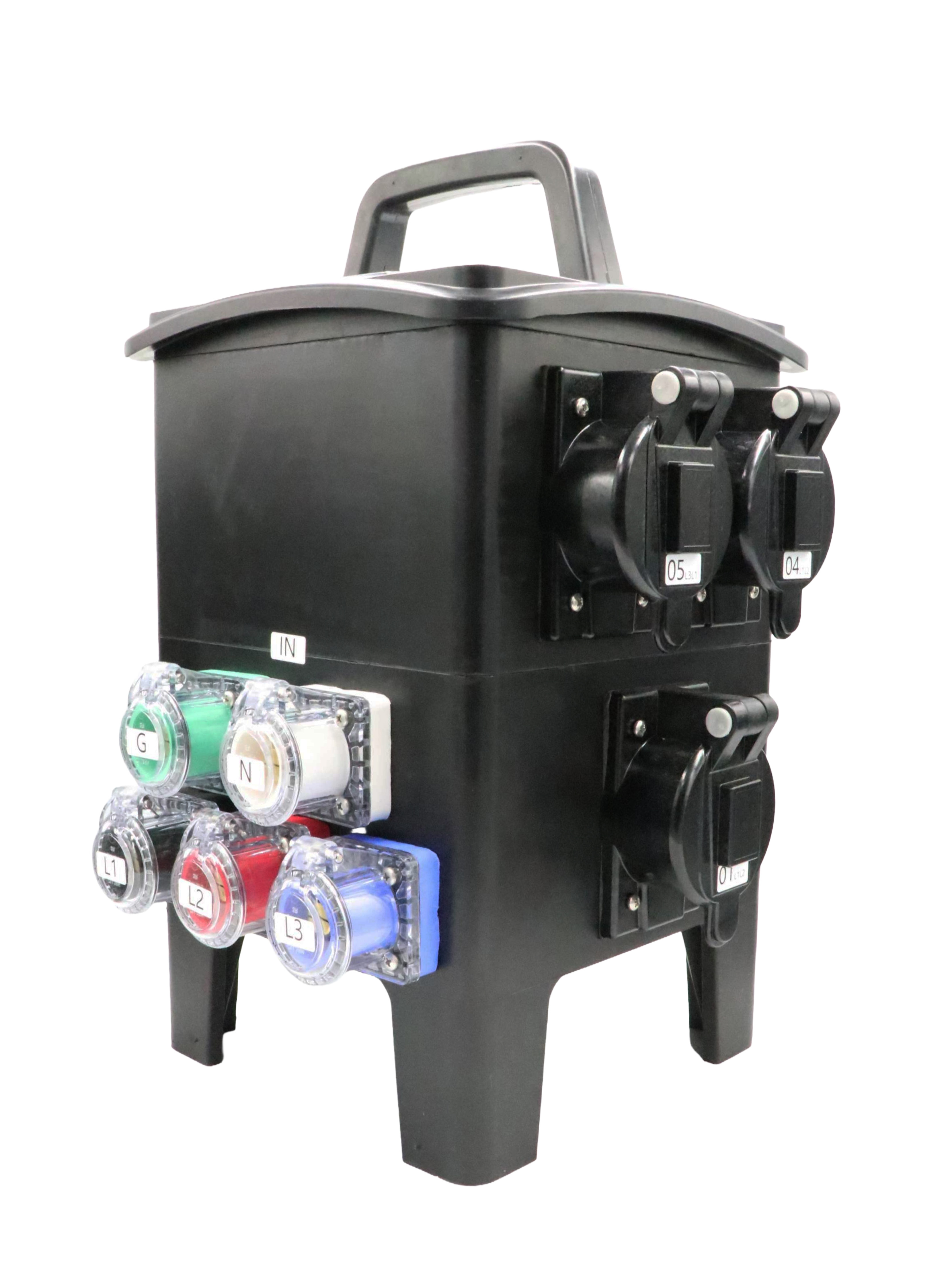

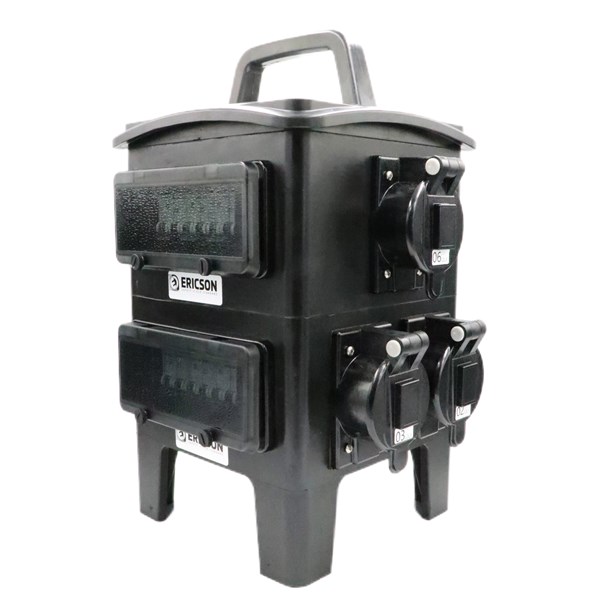

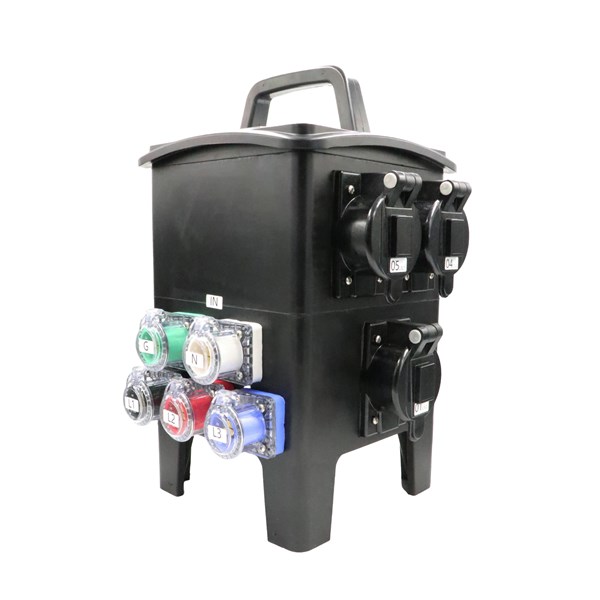

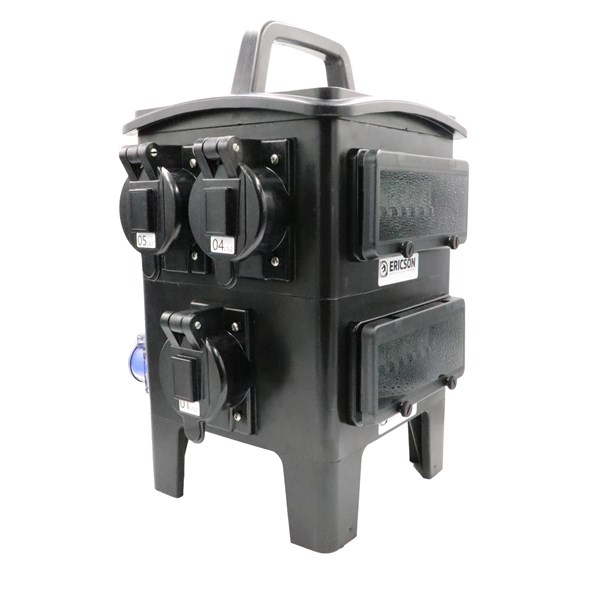

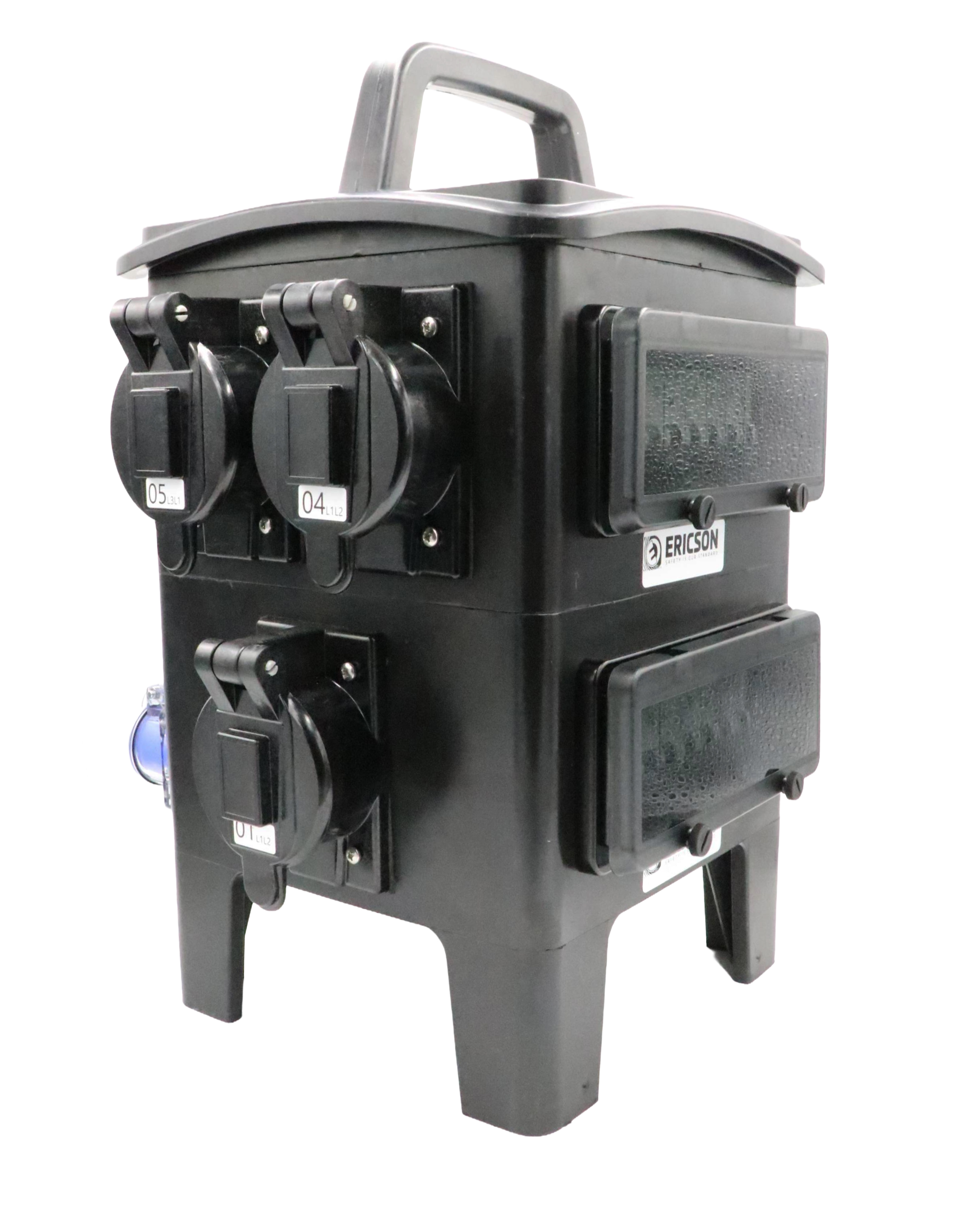

NON METALLIC PDU RATED 200A 120Y208V WITH MALE CAM INLET, OUTDOOR RATED, WITH 6 CS6369 RECEPTACLES W\O FEED-THRU
| Active Revision | B |
|---|---|
| Color | Black |
| UPC Code | 782862935927 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | B |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | PDU-NM |
| Category | PDUs - Power Distribution Unit |
| Sub Category | Compact Distribution Unit - NM |
Technical Info
| Amps | 200 |
|---|---|
| Primary Voltage | 120/208 |
| Phase | 3 |
| Secondary Voltage | 208 |
| Main Circuit Breaker | No, Main Lug Only |
| Receptacle A Type | CS6369 |
| Receptacle A Qty | 6 |
| Feed Thru | No |
| Construction | Non Metallic |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| UL | Listed to UL 1640 |
|---|---|
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8536308000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 36.60000 |
| Shipment Packaging Length (in) | 15.5 |
| Shipment Packaging Width (in) | 16.5 |
| Shipment Packaging Height (in) | 26 |
| Warranty | 1 Year |
L1000917- Jobsite Power- PDC PDU
