Part #:
BE1-CABCM30304-SS

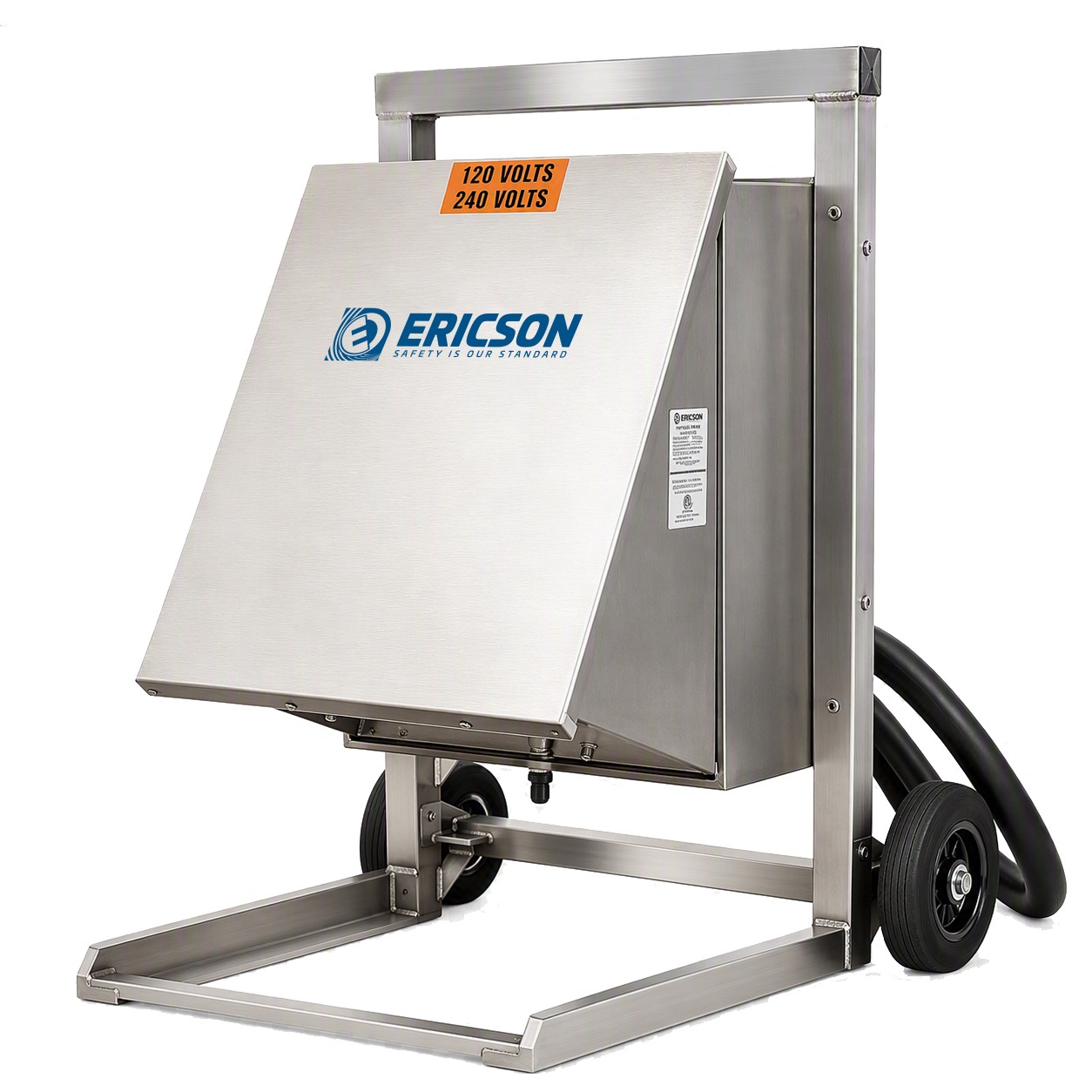

PPB - PORTABLE PANELBOARD, 3PH 120Y208V 100A W/ MCB 15FT AWG2/5 BLUNT INPUT PIGTAIL (3) 5-20 GFCI DUPLEXES, (4) L21-20, STAINLESS STEEL ENCLOSURE
| Ideal Application | Ericson portable power distribution units deliver safe, rugged, and reliable temporary power for demanding applications. Designed for construction, rental, marine, entertainment, and military use, they support fast deployment, repeat use, and dependable performance in harsh environments where downtime is not an option. |
|---|---|
| Color | Stainless |
| Pallet Qty | 2 |
| UPC Code | 782862937457 |
| Country of Origin | USA |
- Availability:
Specifications
| Brand | Ericson |
|---|---|
| Sub Brand / Trademark | Combo Box |
| Category | PDUs - Power Distribution Unit |
| Sub Category | PPB - Portable Panelboard |
Technical Info
| Amps | 100 |
|---|---|
| Primary Input | Blunt 15' 2/5 Type W |
| Primary Voltage | 120/208 |
| Phase | 3 |
| Secondary Voltage | 120/240 |
| Main Circuit Breaker | Yes, Main Circuit Breaker |
| Receptacle A Type | 5-20 GFCI DUPLEX |
| Receptacle A Qty | 3 |
| Receptacle B Type | L21-20 |
| Receptacle B Qty | 4 |
| Feed Thru | No |
| Construction | Stainless Steel & Aluminum |
| Environmental Rating | NEMA 3R |
Standards & Certifications
| ETL | ETL Listed to UL 1640 |
|---|---|
| cETL | cETL Listed to CSA C22.2 No.107.1 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8537109170 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 0.00000 |
| Pallet Qty | 2 |
| Shipment Packaging Length (in) | 28 |
| Shipment Packaging Width (in) | 29 |
| Shipment Packaging Height (in) | 40 |
| Warranty | 1 Year |
