Part #:
4123-25-1612CG

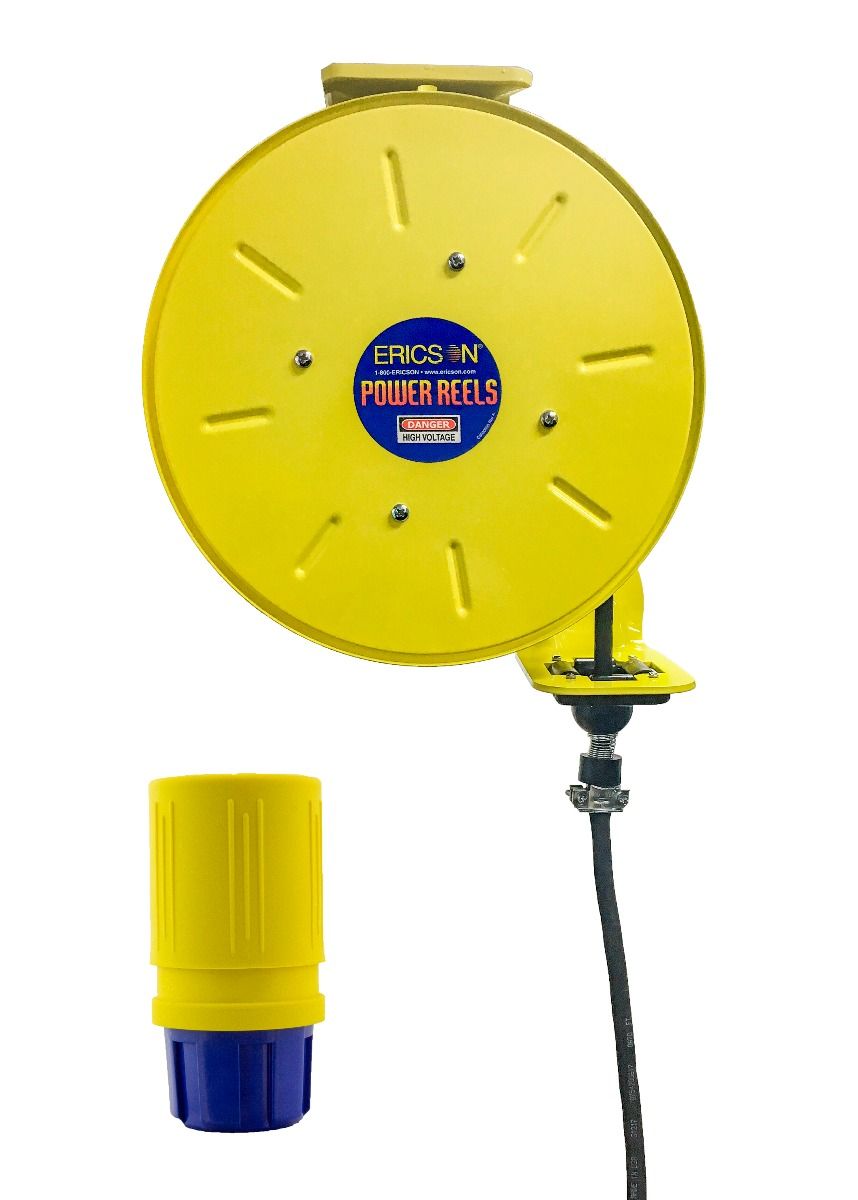

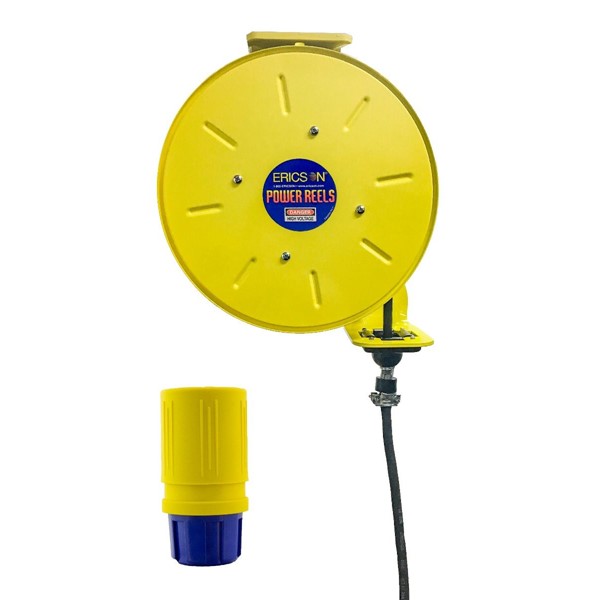

REEL INDUSTRIAL GRADE, RETRACTABLE 25 FT OF 12/3 SJ CABLE W/ CONNECTOR NEMA 5-20C, PRIMARY FEEDER = PLUG NEMA 5-20 @ 6 FT
| Active Revision | B |
|---|---|
| Ideal Application | Ideal for heavier-duty applications such as drop lights, drop power, mobile equipment control cables, conveyor control cables, small cranes/hoists, and utility trucks |
| Color | Yellow |
| Pallet Qty | 24 |
| UPC Code | 782862651674 |
| Country of Origin | USA |
- Availability:
Specifications
| Active Revision | B |
|---|---|
| Brand | Ericson |
| Sub Brand / Trademark | Pow-R-Reel |
| Category | Retractable Cable Reels |
| Sub Category | Industrial Grade |
Technical Info
| Reel Type | 4000 - Light Industrial Duty (12" Spool Diameter) |
|---|---|
| Load Capacity (Amps) | 20 |
| Volts | 125 |
| Cable Length (ft) | 25 |
| AWG | 12 |
| Number of Conductors | 3 |
| Cable Type | SJOW |
| Primary Cable | Plug NEMA 5-20 @ 6 ft |
| Secondary Cable | Connector NEMA 5-20C |
| Finish | Yellow Powder Coated Metal |
| Construction | Heavy-Duty All-Steel Construction |
| Environmental Rating | NEMA 2 |
Standards & Certifications
| UL | UL Listed to ANSI/UL 355, File E59949 |
|---|---|
| CSA | CSA Certified to C22.2 No. 308, File 271857 |
| RoHS | RoHS Compliant |
Shipping & Logistics Info
| Pack/Unit Qty | 1 |
|---|---|
| HTS code | 8479810000 |
| ECCN | EAR99 |
| Gross Weight (lbs) | 35.00000 |
| Pallet Qty | 24 |
| Shipment Packaging Length (in) | 20 |
| Shipment Packaging Width (in) | 16 |
| Shipment Packaging Height (in) | 12 |
| Warranty | 1 Year |
